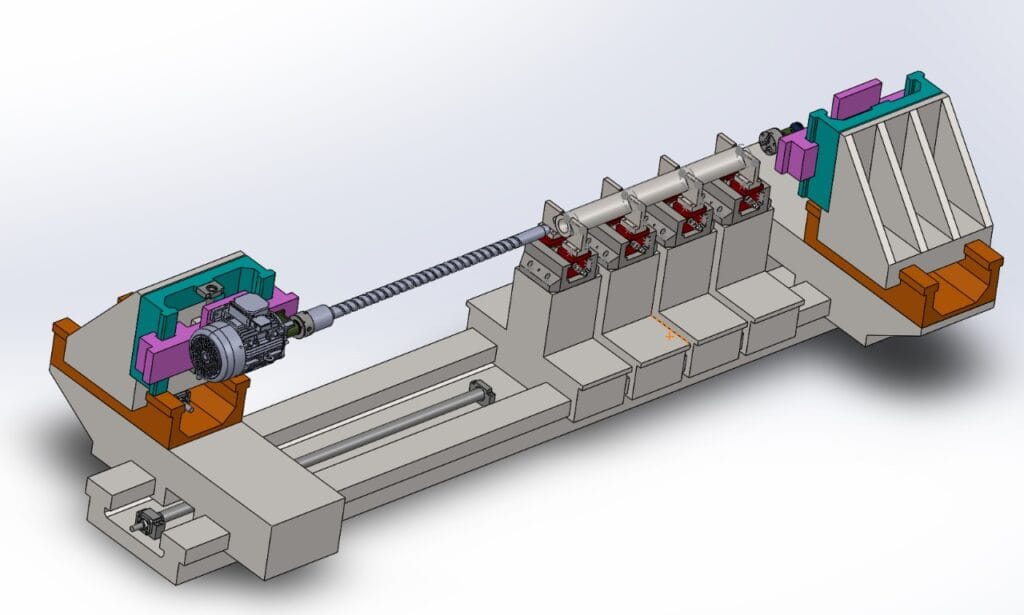

Designing a Horizontal Boring Machine in 3D: Concepts

The 5-Minute Cycle Horizontal Boring Concept

Our engineering team moved beyond standard machine configurations to develop a purpose-built horizontal boring cell. The system is optimized for speed, stability, and high-torque material removal.

• Customized Long-Reach Boring Tooling: The heart of the machine is a proprietary long-reach boring tool designed with advanced vibration-damping materials. This tool is engineered to maintain extreme rigidity even when extended deep into the pipe. The geometry of the cutting head allows for high-feed rates, enabling the machine to complete the boring operation in a fraction of the time required by conventional lathes.
• High-Stability Work Holding & Support: To manage the "heavy and big" nature of the pipes, we implemented a multi-point steady-rest system that automatically adjusts to the pipe’s weight and length. This prevents sagging and ensures that the off-center boring is executed with zero deviation. The machine frame itself is built with high-damping cast iron to absorb the massive energy generated during the 5-minute high-speed cycle.
• Optimized Production Cycle Time: By synchronizing the loading, clamping, boring, and unloading phases, we achieved a total cycle time of just 5 minutes. This was made possible through:
  • Rapid-Response Actuators: For quick pipe positioning.
  • High-Pressure Coolant Systems: To flush out massive chip volumes instantly, preventing heat buildup and tool wear during the aggressive cutting cycle.
  • Automated Tool Pathing: Precisely calculated feeds and speeds that push the limits of material removal without sacrificing the $R_a$ (surface roughness) values.

Impact on Hydraulic Pipe Manufacturing

The Hardai ARMND Horizontal Boring Concept provides a radical competitive advantage for manufacturers of hydraulic cylinders, oil & gas conduits, and heavy industrial piping.

• Massive Throughput Increase: Shifting from a 45-minute cycle to a 5-minute cycle allows for an 800% increase in daily production capacity.
• ​Reduced Cost Per Piece: Faster cycles and optimized tool life significantly lower the overhead costs of large-scale boring.
• Superior Bore Quality: The customized tooling ensures a mirror-like internal finish, reducing the need for secondary honing operations.

Why Partner with Hardai ARMND for Custom Machinery?

At Hardai ARMND Engineering Solutions, we don't just supply machines; we engineer production solutions. This project demonstrates our ability to take a "heavy and difficult" manufacturing problem and solve it through innovative mechanical design and cycle-time optimization.
