Creating Stable High-Speed Test Conditions

Designing a high-speed bearing test machine is substantially different from building a conventional rotating fixture. As rotational speed increases, even small errors in shaft alignment, bearing mounting, coupling alignment, component concentricity or mass distribution can produce significant vibration.
The engineering challenge was therefore not simply to rotate a bearing at high speed. The machine had to establish a stable, repeatable and measurable experimental environment around the test bearing.
Hardai ARMND approached the machine as an integrated electromechanical test system where the drive, shaft, test bearing housing, loading arrangement, thermal system and instrumentation had to work together.

Particular attention was required for:

• High-speed shaft alignment
• Bearing fixture rigidity
• Concentricity of rotating components
• Coupling selection and alignment
• Controlled transmission of rotational motion
• Mechanical isolation of the test section
• Thermal expansion at elevated temperatures
• Temperature measurement near the bearing
• Sensor mounting and routing
• Lubrication arrangement
• Structural vibration
• Repeatability between test cycles
• Safe operation of high-speed rotating components

High-Speed Mechanical Architecture

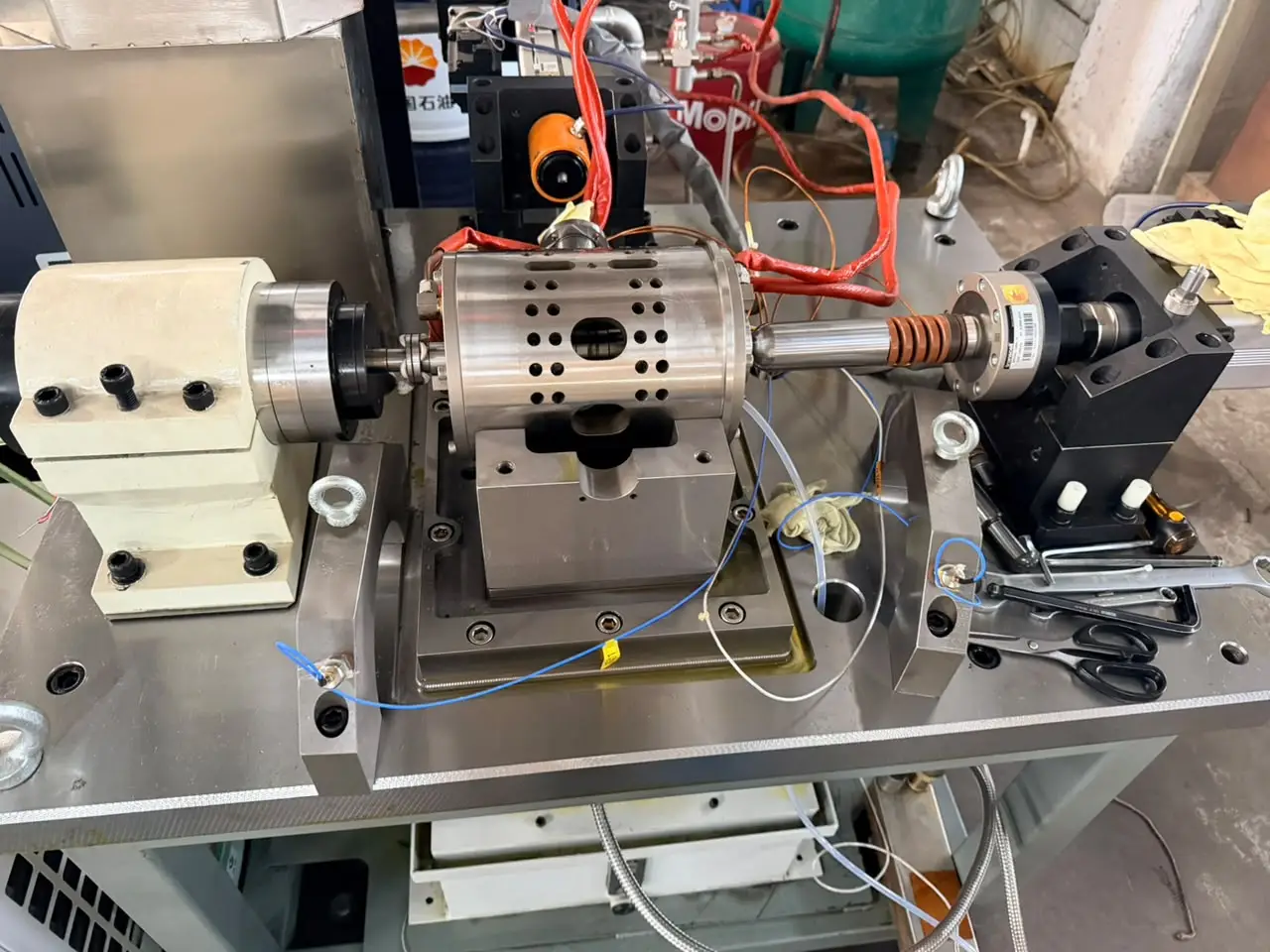

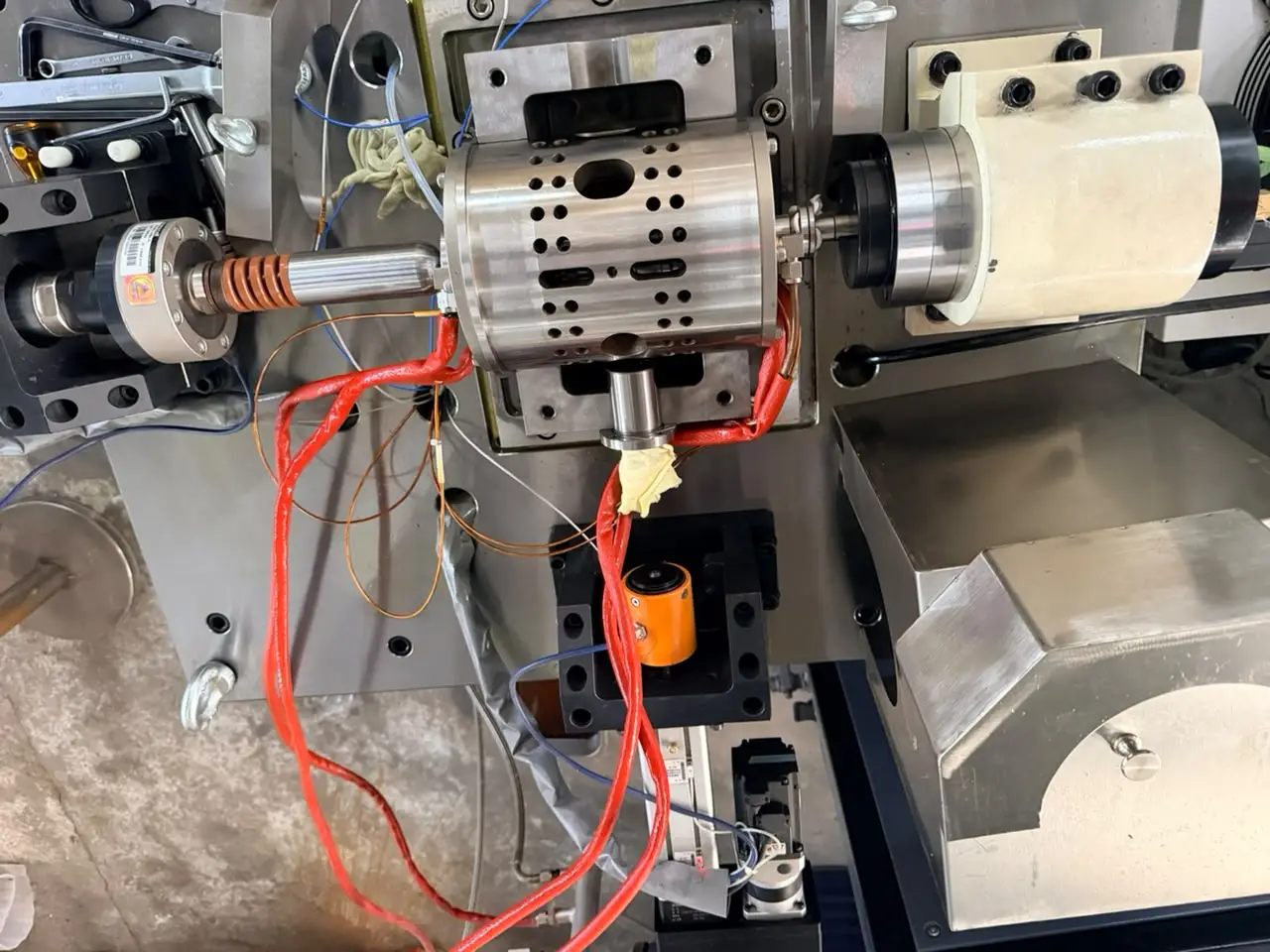

At the centre of the machine is a precision rotating shaft and bearing test assembly.
The drive system transfers controlled rotational motion through the shaft while the test bearing is retained within a specially designed housing. Precision supports on both sides of the test section help maintain the required shaft alignment and mechanical stability.
The test-bearing housing was designed not merely as a mechanical enclosure but as an important part of the experimental system.
Its architecture allows the bearing operating condition to be controlled while providing access for instrumentation, temperature monitoring and experimental configuration changes.
The complete assembly is mounted on a rigid machined base to establish a common mechanical reference between the drive, test section and loading components. This reduces alignment errors during assembly and provides the stiffness necessary for repeatable high-speed experiments.

High-Temperature Bearing Testing

Bearing performance cannot be evaluated only as a function of rotational speed.
Temperature strongly influences lubricant viscosity, lubricant-film formation, frictional behaviour and the thermal condition of the bearing.
For this reason, the test rig incorporates provisions for controlled elevated-temperature experimentation around the bearing test section.
This enables researchers to study the combined effect of speed and temperature instead of evaluating each parameter independently.

High-temperature testing can be particularly useful when investigating:

• Lubricant viscosity behaviour
• Grease stability
• Bearing temperature rise
• Lubricant degradation
• Thermal equilibrium
• Friction changes with temperature
• Additive effectiveness
• High-temperature lubricant formulations

Controlled Bearing Loading Mechanism

Real bearings rarely operate under speed alone.
Depending on the application, they experience axial, radial or combined loading while rotating.
The Hardai ARMND test-rig architecture therefore incorporates a dedicated loading arrangement around the bearing test section so that controlled mechanical conditions can be introduced during experimentation.
The loading system and precision fixture work together to maintain the required test condition without unnecessarily disturbing the primary rotating assembly.
This provides researchers with the ability to investigate the relationship between:
Speed → Load → Lubrication → Temperature → Bearing Response
Rather than studying bearing behaviour as an isolated parameter, the test platform enables these variables to be investigated as an interacting system.

Lubricant and Grease Performance Analysis

One of the important applications of the machine is lubricant performance research.
At high rotational speeds, the lubricant inside a bearing is subjected to severe shear and rapidly changing contact conditions. The lubricant must maintain adequate film formation while simultaneously controlling friction and heat generation.
By running controlled comparative test cycles, researchers can evaluate how changes in lubricant formulation influence the operating behaviour of the bearing.
This makes the machine useful not only for bearing manufacturers but also for lubricant manufacturers, R&D laboratories, automotive research centres, universities and tribology researchers.

The test rig can therefore be used as an experimental platform for comparing different:

• Lubricating oils
• Bearing greases
• Base oils
• Additive packages
• Friction modifiers
• Anti-wear additives
• High-temperature lubricants
• Specialty bearing lubricants

Relevance to Electric Vehicle Lubricant Development

Electrification is creating new challenges for bearing and lubricant technology.
Electric motors can operate at considerably high rotational speeds, making bearing friction, temperature, vibration and lubricant behaviour increasingly important to drivetrain efficiency and reliability.
International research into high-speed bearing test rigs increasingly focuses on parameters such as bearing friction torque versus speed, lubricant temperature, vibration, lubricant life and high-speed grease performance.
The Hardai ARMND High-Speed Bearing Test Rig follows this broader engineering requirement by providing a customizable experimental platform that can support the development and comparative evaluation of advanced lubricants for future rotating machinery.
With suitable instrumentation and experimental configuration, such test platforms can support research related to EV motors, high-speed electric drives and next-generation lubricant formulations.

Instrumentation & Experimental Data Acquisition

A research machine becomes valuable only when its mechanical behaviour can be converted into useful experimental data.
The test rig therefore provides provisions for integrating multiple sensing and measurement technologies around the test assembly.
Sensor outputs can be connected to a dedicated data-acquisition system for recording and analysing the behaviour of the bearing throughout the experimental cycle.
Instead of relying only on the final physical condition of the bearing, researchers can study how the system behaves throughout acceleration, steady-state running, temperature rise and extended operation.

Depending upon the research requirement, instrumentation can be configured for parameters such as:

• Rotational speed
• Bearing temperature
• Lubricant temperature
• Applied load
• Vibration
• Frictional behaviour
• Torque
• Test duration
• Thermal response

Precision Machine Designing

The development of the test rig required careful integration of multiple engineering disciplines.
Hardai ARMND Engineering Solutions developed the system around the actual experimental objective rather than adapting a standard production machine.

The engineering process involved consideration of:

• Mechanical Design – shaft, bearing housing, fixtures, supports and machine base.
• Rotating System Engineering – alignment, coupling, concentricity and high-speed stability.
• Thermal Engineering – heating arrangement, temperature monitoring and thermal expansion.
• Instrumentation Engineering – integration of sensors without interfering with the rotating assembly.
• Electrical Engineering – drive control, instrumentation and system integration.
• Manufacturing Engineering – precision machining and dimensional control of critical components.
• Assembly Engineering – controlled alignment of the complete rotating system.

From Research Requirement to Physical Test Machine

The project began with understanding the actual experimental parameters that needed to be investigated.
From these requirements, Hardai ARMND developed the test-rig architecture, mechanical layout and component arrangement.
The engineering journey followed a structured development process:
Research Requirement → Concept Development → Engineering Calculations → 3D CAD Design → Component Selection → Precision Manufacturing → Assembly → Alignment → Instrumentation → Trial Testing → Experimental Validation
The machine was subsequently assembled and analysed as an integrated system rather than treating individual components independently.
This development approach allows design improvements to be introduced progressively based on actual experimental observations.

Built in India for Advanced Engineering Research

Specialized bearing and tribology research equipment is often associated with imported laboratory machinery.
However, research applications frequently require modifications that standard catalogue equipment cannot easily accommodate.
Hardai ARMND Engineering Solutions approaches such projects differently. Instead of forcing the experiment to fit an existing machine, the machine is engineered around the experiment.

The High-Speed & High-Temperature Bearing Test Rig demonstrates the capability to develop specialized research equipment in India by combining:

• Custom machine design
• Precision machining
• High-speed rotating-system engineering
• Thermal engineering
• Instrumentation
• Automation
• Data acquisition
• Experimental testing
• In-house engineering development

A Platform for Future Bearing & Tribology Research

The significance of this project extends beyond a single bearing experiment.
The modular engineering architecture provides a foundation from which additional experimental capabilities can be developed according to future research requirements.
Possible future configurations can include advanced vibration monitoring, friction torque measurement, controlled lubricant circulation, automated temperature profiling, different bearing geometries, endurance testing and advanced condition monitoring.
The project therefore represents Hardai ARMND Engineering Solutions' capability in developing custom Special Purpose Test Machines and R&D equipment for advanced mechanical engineering applications.
From an experimental requirement on paper to a precision physical test setup, the project demonstrates how indigenous machine design and manufacturing can support the next generation of bearing technology, lubricant development, EV research and high-speed rotating machinery.
